Architectural Guide to 3D Textured Marble Wall Tiles: Craft, Light & Shadow, and Substrate Engineering

The Tactile Revolution in Interior Architecture: 3D Surface Aesthetics

Luxury interior architecture and interior design are undergoing a tactile evolution. Driven by design philosophies such as Wabi-Sabi, Biophilic Design, and Quiet Luxury, architects and interior designers are shifting focus from flat, highly reflective surfaces toward three-dimensional physical textures. While traditional polished natural marble displays rich mineral veining, flat reflective finishes can produce unwanted specular glare under bright interior lighting. In contrast, three-dimensional textured marble wall tiles introduce dynamic physical depth, reshaping how natural stone interacts with light and spatial geometry.

From an optical perspective, the defining characteristic of a textured stone wall is its manipulation of directional light. When natural daylight or artificial grazing light strikes an undulating marble surface at an angle, the micro-geometric contours trigger a chiaroscuro effect—a play of direct highlights and deep shadows. Raised geometric ridges intercept direct illumination to form crisp high points, while lower channels cast soft, continuous shadow pockets. This optical interaction creates an evolving visual rhythm across the wall as interior light angles shift throughout the day.

Critical Engineering Mandate: Wall-Only Application

Due to their pronounced surface profiles, 3D fluted and striated marble tiles are engineered exclusively for vertical wall applications. They must not be specified or installed on floors or countertops for several practical and structural reasons:

• Floor Application Risks: Walking across raised profile grooves creates an uneven underfoot surface and severe tripping hazards. Concentrated foot traffic across thin raised stone ridges causes stress points that lead to chipping or cracking; furthermore, horizontal recessed channels trap dirt, debris, and moisture, making routine floor maintenance unmanageable.

• Countertop Application Limitations: Non-flat profiles prevent glassware, tableware, or accessories from resting securely, while recessed grooves complicate surface wiping and spill cleanup.

By focusing strictly on wall installations, textured marble wall tiles serve as dedicated architectural elements for fireplace surrounds, living room feature walls, bath backsplashes, and commercial accent walls.

Technical Deconstruction: OL Fluted vs. FS Striated Finishes

The fabrication of textured marble finishes relies on industrial-grade Computer Numerical Control (CNC) diamond milling and high-frequency gang saw scoring. Starting with 100% solid natural marble slabs, diamond tooling carves precise geometric relief patterns into the stone surface. This mechanical sculpting alters both the physical texture and the way light reflects and scatters across the stone surface.

OL Textured Finish (3D Fluted / Vertical Semi-Circular Grooves)

The OL finish features alternating convex semi-circular ridges and recessed fluted channels arranged in a uniform vertical sequence. During manufacturing, custom-shaped CNC diamond routing wheels pass across the solid marble slab, carving smooth, rounded profile arches into the stone.

From a lighting perspective, the rounded apex of each convex ridge captures direct light, forming vertical highlight bands. As the curve slopes downward into the adjacent groove, light intensity drops, casting a soft linear shadow within the recessed channel. When paired with grazing light sources angled at 15° to 30°, the alternating highlights and shadows draw the eye upward, creating a visual sense of added vertical height in low or standard-ceiling rooms.

When natural veining—such as smoke-gray lines or golden mineral seams—crosses the 3D fluted profile, the linear veining appears subtly distorted across the curved surfaces, creating a dialogue between geometric precision and organic stone patterns.

OL Fluted — Close-up: The light catches each convex ridge as a crisp highlight, while the recessed channels fall into continuous shadow. This is the chiaroscuro effect described above

FS Textured Finish (Striated Micro-Grooves / Fine Line Scoring)

The FS finish represents a refined, tactile micro-texture. Produced using high-frequency diamond scoring blades, the FS process carves ultra-fine, parallel linear channels across the marble face. These shallow, closely spaced micro-grooves create a subtle pinstripe profile across the stone.

Optically, the FS finish breaks up specular reflections, resulting in anisotropic diffuse reflection. Rather than bouncing light in a single direction like polished marble, the micro-grooves scatter incoming light across multiple micro-angles. This diffusion softens harsh glare, giving the stone a muted, matte appearance reminiscent of fine woven textiles like linen or silk.

The FS finish softens the cool feeling of natural stone, introducing an organic, tactile depth well suited for serene bath spaces and minimalist residential interiors.

FS Striated — Close-up: Watch how the micro-grooves break up reflected light. The surface shifts from a sharp specular bounce to a soft, diffuse matte finish as the angle changes.

The 7-SKU Heavy Textured Marble Wall Tile Portfolio

Developed for high-end residential and commercial wall projects, the 3D Textured Marble Wall Tile collection from luxurymarblecraft.com features 3 natural marble varieties (Carrara Gray, Amber Gold, and Snow Mountain White), 2 geometric formats (12"x24" rectangular and 11.4"x9.9" Hexagon), and substantial 15mm, 18mm, and 20mm tile thicknesses. The complete product range is available on the main Wall Tile Collection page.

12x24 Carrara Gray Marble Tile OL Textured Finished

Product Page: 12x24 Carrara Gray Marble Tile OL Textured Finished

This 12" x 24" (305mm x 610mm) wall tile features a heavy 18mm thickness (~0.7 in) and weighs around 19.85 lbs per piece. Cut from natural Carrara Gray marble, it features a cool smoke-gray to soft white background traversed by dark gray veining. The 18mm thickness allows for deeper fluting channels. As dark veins pass across the vertical convex ridges, the geometric surface adds structured depth to gray marble feature walls.

• Promotion: Currently offered in a year-end promotion at $69.99 / box with Free Shipping (valid through December 31, 2026).

• Packaging: 4 tiles per box (8 sq ft coverage).

Hexagon Carrara Gray Marble Tile OL Textured Finished

Product Page: Hexagon Carrara Gray Marble Tile OL Textured Finished

Measuring 11.4" x 9.9" (5.7 in side length) with an 18mm thickness (~0.7 in), this tile combines a classic geometric hexagon shape with vertical OL 3D fluting. By rotating individual hexagon tiles during wall installation, installers can align or offset the fluted ridges at 60° or 120° angles, creating dynamic woven patterns across backsplashes or shower walls.

• Packaging: 12 tiles per box (7 sq ft coverage).

12x24 Amber Gold Marble Tile FS Textured Finished

Product Page: 12x24 Amber Gold Marble Tile FS Textured Finished

Measuring 12" x 24" with a 15mm thickness (~0.5 in) and weighing around 16.4 lbs per tile, this selection features warm honey, cream, and golden amber tones intermingled with natural brown veining. The fine FS micro-striated scoring softens the warm stone background, producing a velvet-like matte surface ideal for warm residential bars, powder rooms, and accent walls.

• Promotion: Currently offered in a year-end promotion at $69.99 / box with Free Shipping (valid through December 31, 2026).

• Packaging: 4 tiles per box (8 sq ft coverage).

Hexagon Amber Gold Marble Tile FS Textured Finished

Product Page: Hexagon Amber Gold Marble Tile FS Textured Finished

This 11.4" x 9.9" hexagon wall tile combines the warm amber marble background with micro-striated FS surface scoring. The geometric layout breaks up large wall areas, while the fine linear grooves diffuse ambient light for a subtle, tactile warmth.

• Packaging: 12 tiles per box (7 sq ft coverage).

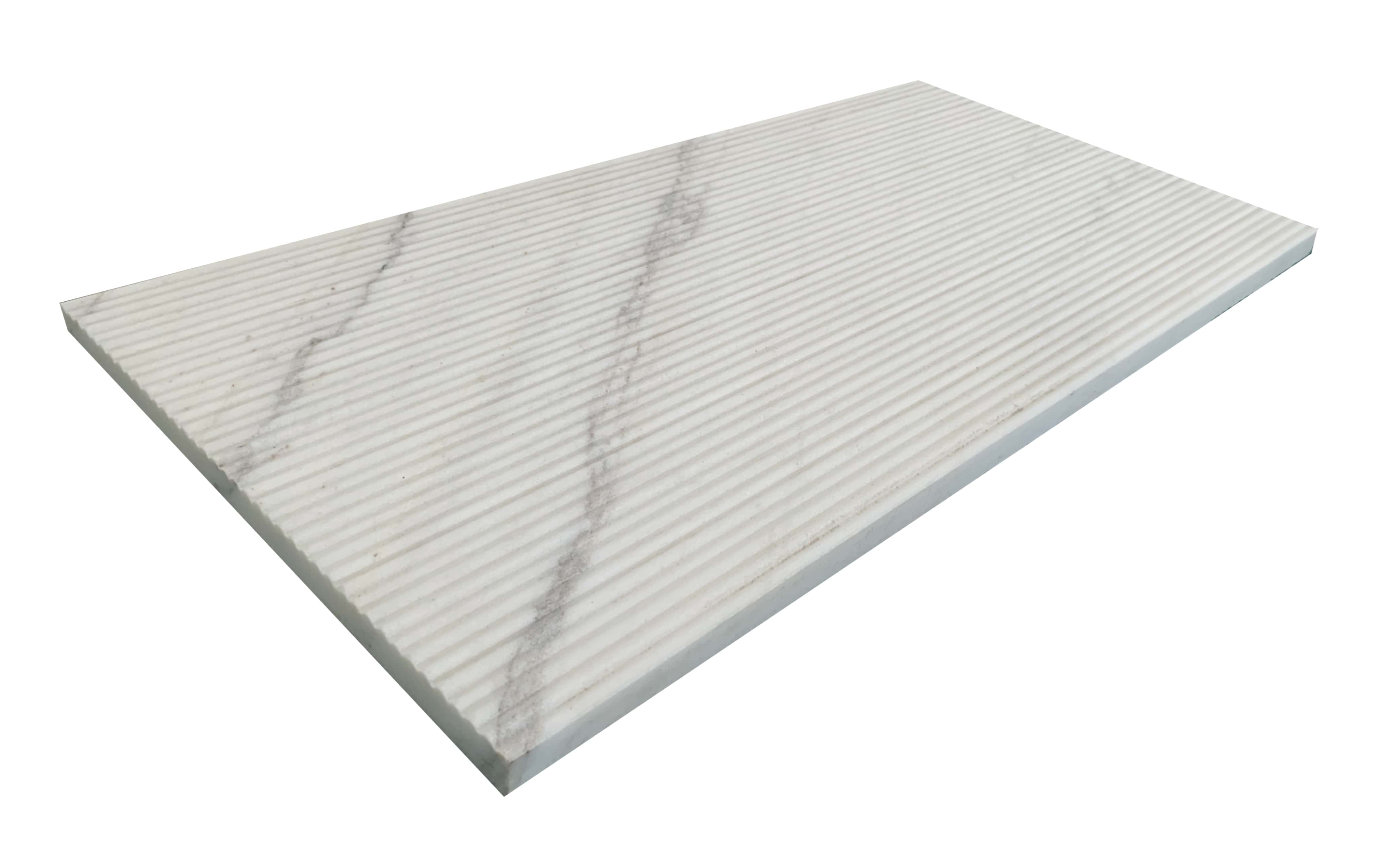

12x24 Snow Mountain White Marble Tile OL Textured Finished

Product Page: 12x24 Snow Mountain White Marble Tile OL Textured Finished

Featuring a heavy 20mm thickness (~0.8 in) and weighing 21.6 lbs per tile, this 12" x 24" format is crafted from Snow Mountain White marble. The stone displays a bright white ground contrasting with charcoal and deep gray veining. The 20mm tile body allows for deeper CNC fluting, resulting in dramatic light and shadow contrasts. It is well suited for high-ceiling room walls, entry halls, and full-height fireplace surrounds.

• Packaging: 4 tiles per box (8 sq ft coverage).

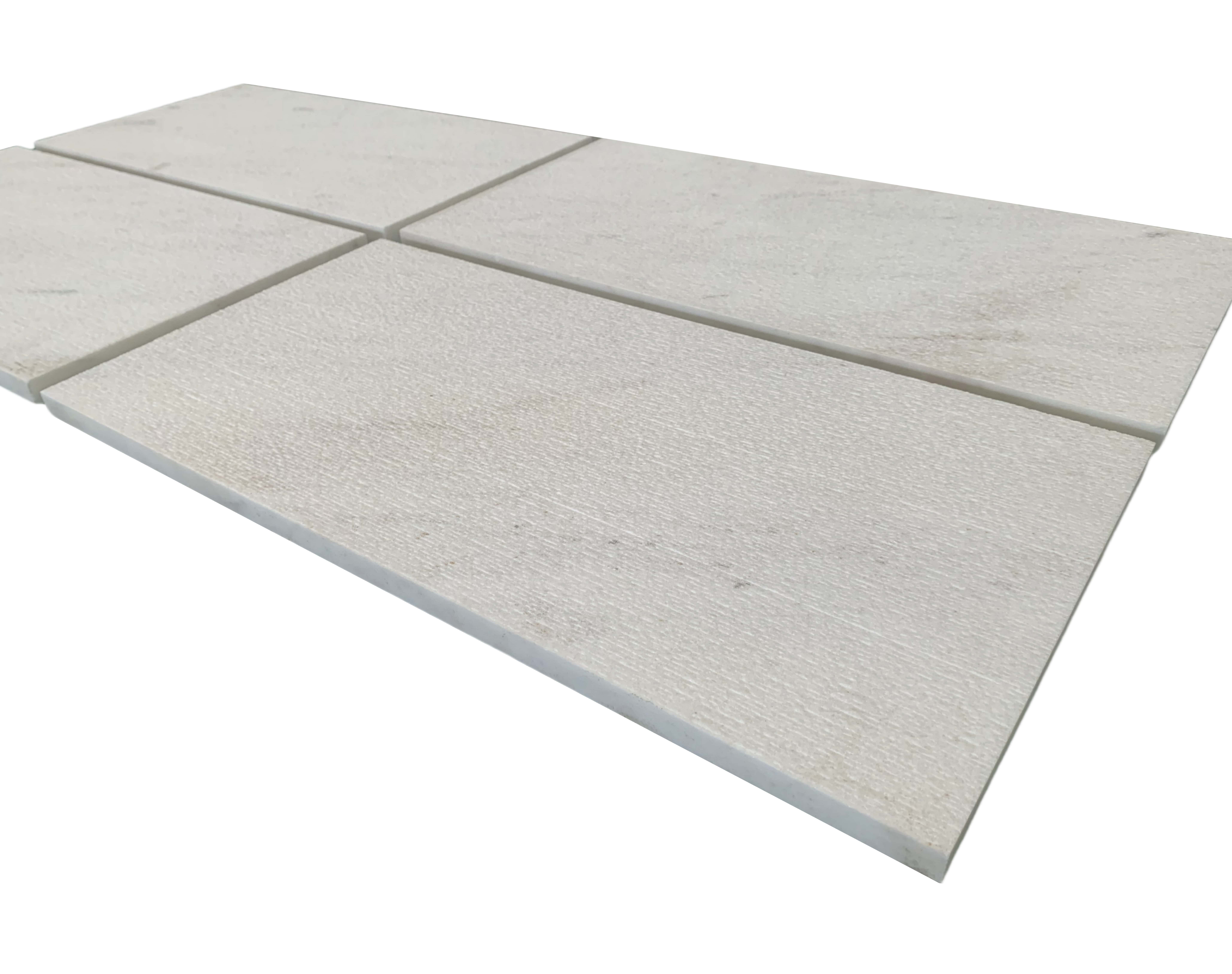

12x24 Snow Mountain White Marble Tile FS Textured Finished

Product Page: 12x24 Snow Mountain White Marble Tile FS Textured Finished

Also built on a 20mm thick (~0.8 in), 21.6 lb solid marble body, this selection presents the Snow Mountain White stone with an FS micro-striated finish. Rather than bold fluted shadows, the fine parallel line scoring creates a subtle matte texture that softens the contrast between the white background and deep gray veins.

• Packaging: 4 tiles per box (8 sq ft coverage).

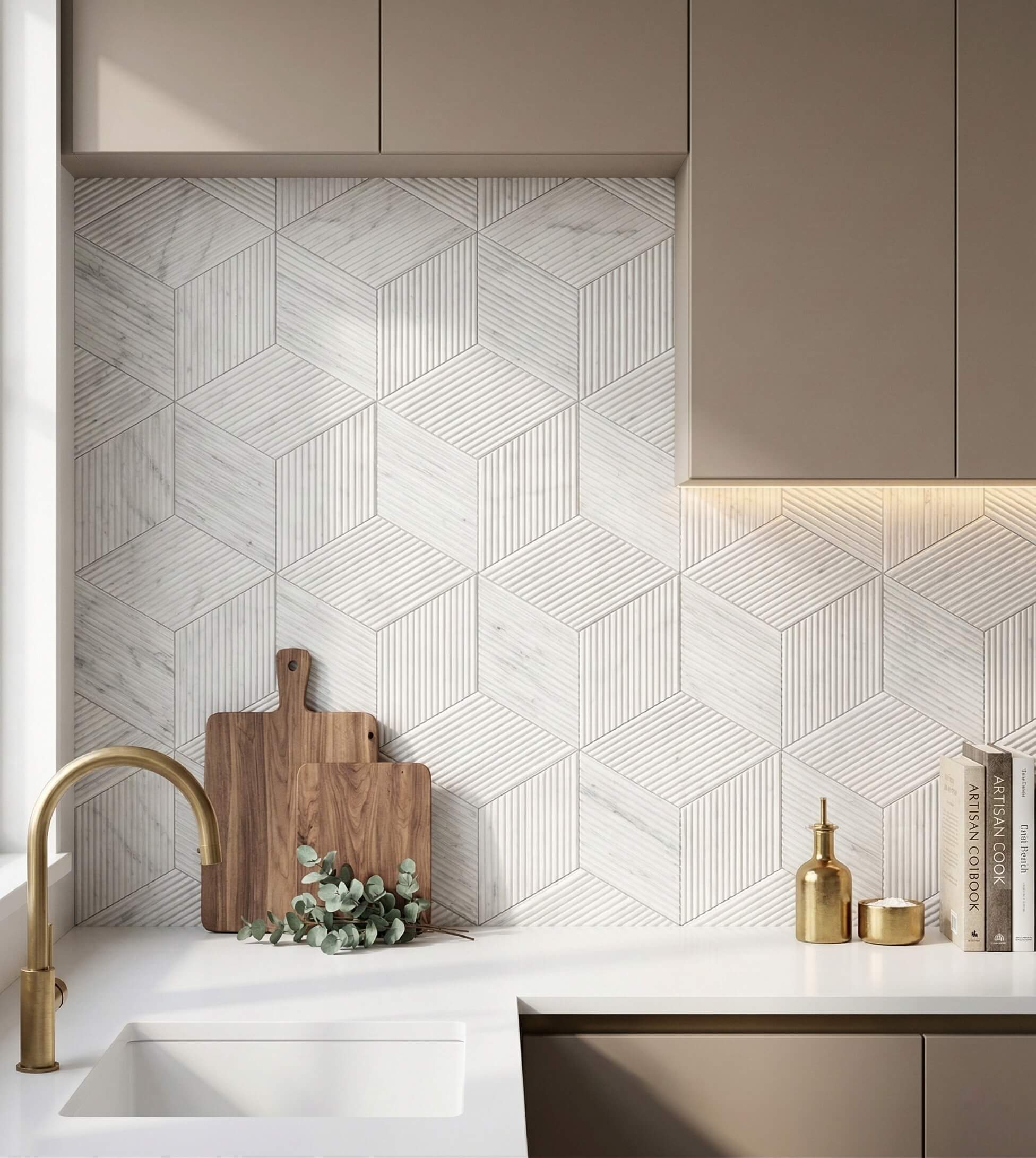

Hexagon Snow Mountain White Marble Tile OL Textured Finished

Product Page: Hexagon Snow Mountain White Marble Tile OL Textured Finished

This 11.4" x 9.9" hexagon tile pairs Snow Mountain White marble with vertical 3D fluting. It brings together geometric mosaic layout, charcoal veining, and 3D tactile ridges, serving as a focal point for bath feature walls and vanity mirrors.

• Packaging: 12 tiles per box (7 sq ft coverage).


Substrate Preparation & Installation Protocols (TCNA & ANSI Standards)

Installing heavy natural stone wall tiles (15mm to 20mm thick) requires strict adherence to Tile Council of North America (TCNA) guidelines and ANSI setting standards. Because single 12"x24" tiles weigh up to 21.6 lbs (equating to approximately 10.8 lbs per square foot of surface load), vertical installations require proper wall framing stiffness, high-bond polymer mortars, and correct back-buttering.

The wall assembly comprises four main structural layers: a rigid wall substrate (minimum 1/2 in cement backer board meeting ANSI A118.9 or solid masonry), a waterproof membrane (ANSI A118.10 for wet areas), a polymer-modified mortar bed combed with a notched trowel, and the back-buttered heavy marble tile.

1. Substrate Deflection Limits

Before setting heavy stone on vertical framing, contractors must verify structural rigidity. For natural stone floor installations, L/720 is commonly specified; wall assemblies should follow TCNA and substrate manufacturer requirements. Standard drywall or unreinforced wood paneling allows excessive flex that can lead to tile bond failure or joint cracking. Wall assemblies should be constructed using a minimum 1/2-inch cement backer board or solid masonry.

2. Mortar Selection: ANSI A118.15 LHT Standards

Because these tiles feature edge lengths exceeding 15 inches and thicknesses up to 20mm, they fall under Large and Heavy Tile (LHT) installation requirements; ANSI A118.15 covers LHT mortars.

• Prohibited Adhesives: Unmodified thin-set mortar (ANSI A118.1) and organic mastic adhesives must not be used for vertical installation of heavy stone. Organic mastic lacks sufficient shear bond strength and cannot cure properly behind thick stone slabs.

• Specified Mortars: Installers should specify polymer-modified Large and Heavy Tile (LHT) mortars meeting ANSI A118.15, such as MAPEI Large Tile & Stone Mortar or SikaTile-350 FlexSet. These mortars contain dry polymer additives that deliver shear bond strengths exceeding 400 PSI and feature non-sag properties (ANSI A118.15T), preventing heavy 21 lb tiles from slipping on vertical walls during setting.

3. Back-Butter Technique & Coverage

To ensure long-term vertical adhesion, installers must practice 100% back-buttering:

1. Comb LHT mortar onto the cement backer board in straight, parallel ridges using a 1/2" × 1/2" square-notched trowel.

2. Apply a thin, flat skim coat of mortar to the back of each marble tile (back-buttering) to fill micro-pores and tool marks.

3. Press the tile into the wall mortar bed, sliding it back and forth perpendicular to the trowel ridges to collapse the mortar lines and release trapped air.

4. Per ANSI A108.5, maintain a minimum mortar coverage of 95% across the back of each stone tile (and 95%–100% coverage in wet areas like shower walls). Inadequate coverage leaves air pockets where trapped moisture can cause staining or efflorescence over time.

4. Movement Joints & Penetrating Sealing

Vertical tile runs require flexible movement joints at corners, wall intersections, and every 8 to 12 feet along continuous walls, in compliance with TCNA EJ171. Fill movement joints with flexible silicone sealant meeting ASTM C920 rather than rigid grout.

Natural marble possesses inherent micro-porosity. Prior to grouting, apply a high-grade penetrating silane/siloxane impregnating sealer across the textured surface. Follow the sealer manufacturer’s instructions for pre-grout and post-grout sealing. Impregnating sealers absorb into the stone pores without altering the natural matte sheen of OL fluted or FS striated finishes, protecting the wall against water penetration, soap scum, and oil stains.

E-Commerce Logistics: Packaging Engineering & U.S. Warehouse Fulfillment

Shipping heavy natural stone tiles via standard courier networks has historically resulted in high breakage rates. Traditional stone suppliers rely on wooden crates or palletized freight, which require specialized tools (such as crowbars) to open, incur heavy freight handling fees, and impose high Minimum Order Quantities (MOQs).

To enable direct online ordering for residential projects, luxurymarblecraft.com developed a wood-crate-free packaging system designed for parcel delivery.

Packaging Construction

• Inner Custom EPE Foam: Each tile is encased in custom-molded Expanded Polyethylene (EPE) pearl cotton foam. The foam absorbs impact energy and protects raised 3D flutes and tile edges during transit.

• 5-Ply Corrugated Outer Box: The exterior box uses heavy-duty, 5-ply corrugated cardboard rated for Edge Crush Test (ECT) standards. Sized for standard courier pickup (UPS/FedEx Ground), it eliminates pallet surcharges.

• Tool-Free Unboxing: Homeowners and contractors can open packages using a standard utility knife, avoiding heavy wooden frames or metal strapping.

Standardized Packaging & Ordering Flexibility

U.S. Warehouse Stock & Unedited Quality Assurance

All 7 textured marble wall tile products are stocked in U.S. warehouses, enabling nationwide fulfillment within 3 to 7 business days. This eliminates the 45-to-60-day lead times typical of custom overseas shipments, helping projects stay on schedule.

To provide complete transparency prior to purchase, product landing pages include unedited, real-world inspection photographs taken during factory dry-layout quality checks.

These photos openly display inherent natural stone characteristics:

1. Background & Veining Variations: Honest representation of tone shifts and veining density across real stone batches.

2. Natural Mineral Characteristics: Transparent view of natural mineral deposits, small surface pores, and micro-fissures inherent to natural marble.

3. Resin Fill Disclosures: Clear documentation of industry-standard, color-matched resin fills used during factory processing to stabilize natural fissures.

This transparent documentation allows designers, contractors, and homeowners to review actual stone variation and make informed purchasing decisions directly online.

Architectural Lighting & Spatial Applications

Textured marble wall tiles offer design versatility across multiple residential and commercial interior spaces.

1. Bath Backsplashes & Wet Bars

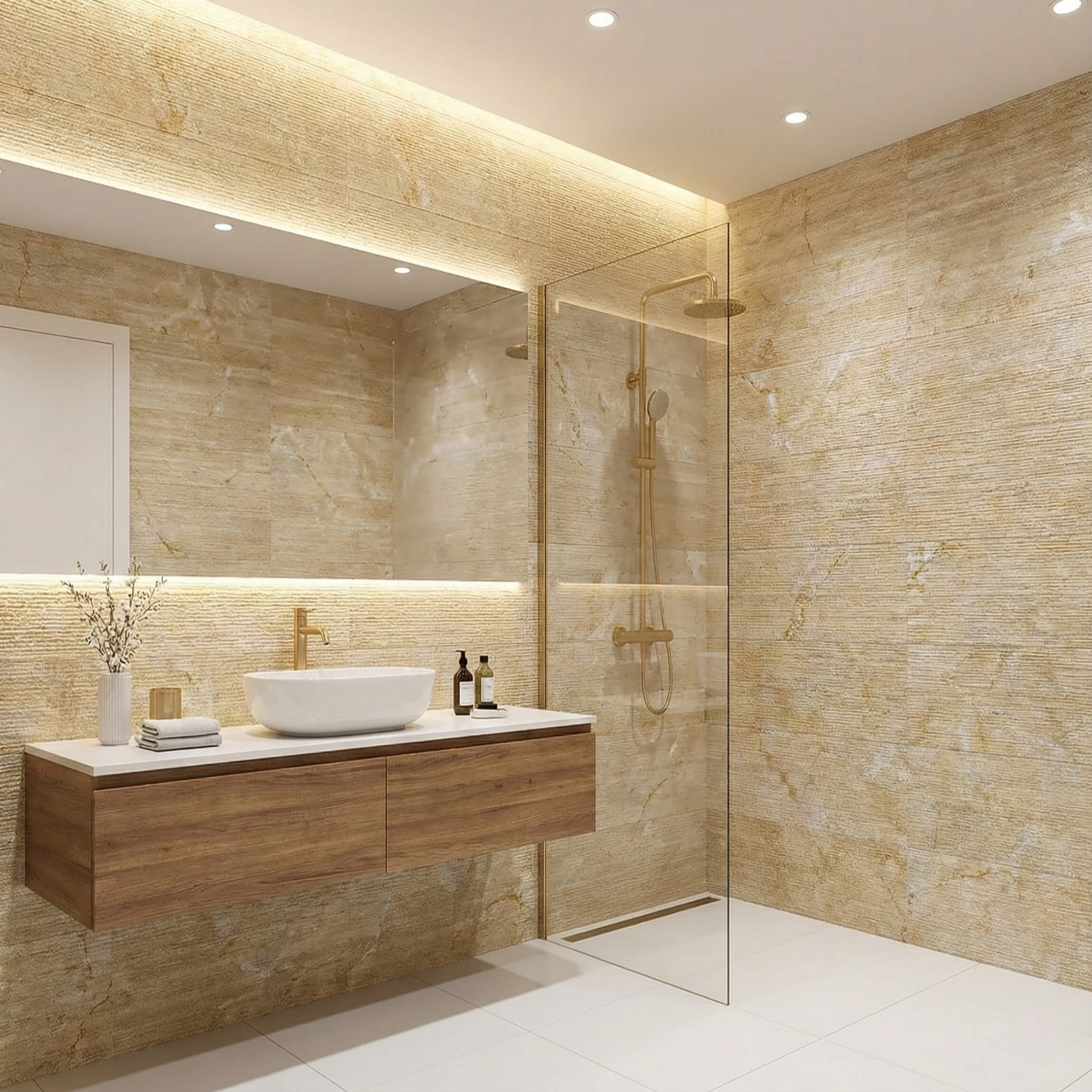

Using 12x24 Amber Gold Marble Tile FS Textured Finish behind a home bar or vanity mirror introduces warm honey tones and diffuse light reflection. Paired with 2700K warm sconce lighting, the fine linear micro-grooves create a quiet, tactile backdrop. In shower enclosures, Hexagon Carrara Gray Marble Tile OL Textured Finish adds geometric fluting that catches changing light across wet surfaces.

2. Fireplace Surrounds & Main Feature Walls

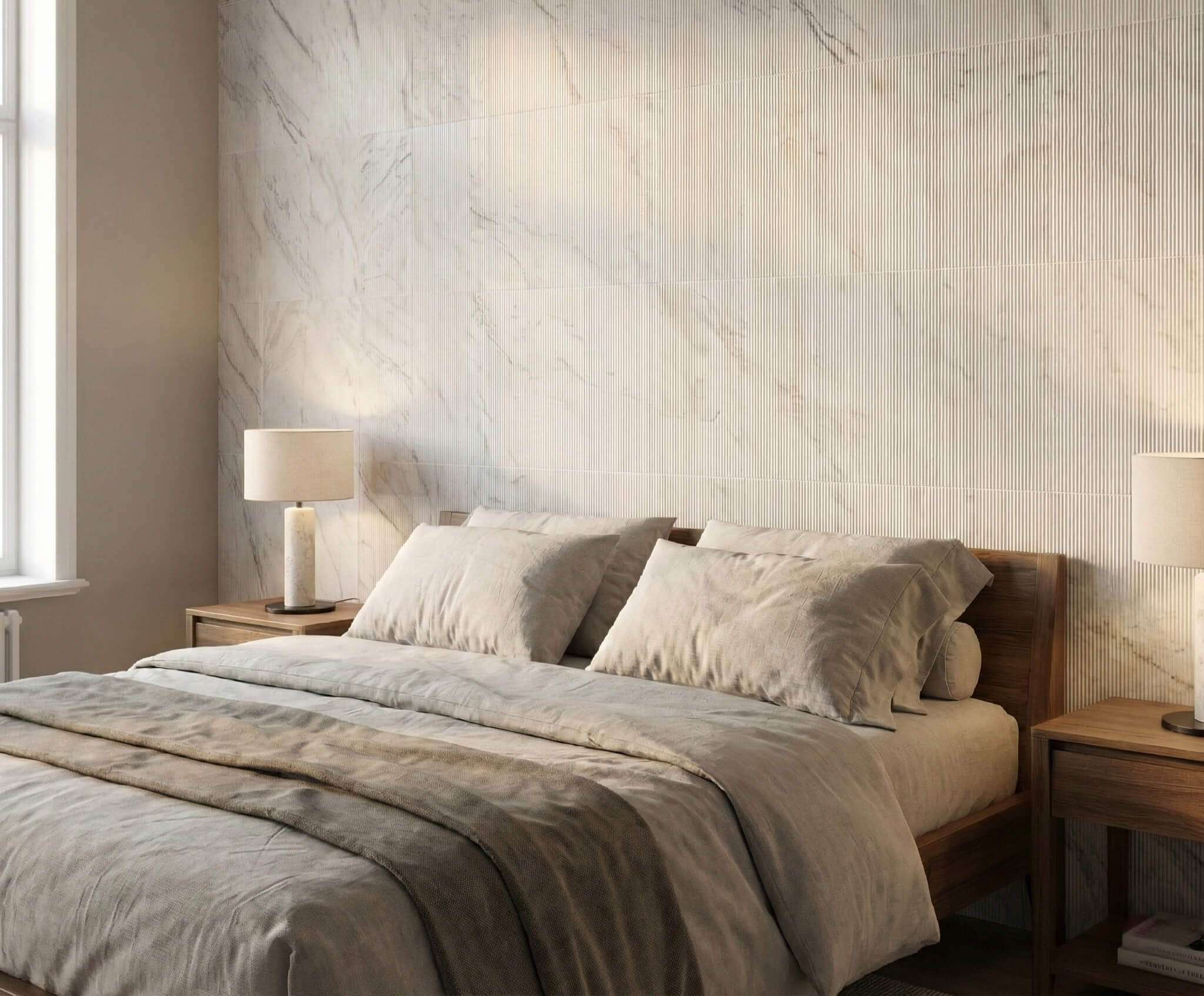

For grand living rooms or high-ceiling entryways, 12x24 Snow Mountain White Marble Tile OL Textured Finish (20mm thick) offers dramatic visual scale. The 20mm tile body permits deeper fluted grooves that draw the eye upward. When illuminated by top-mounted recessed grazing lights (15° beam angle), the contrast between pure white stone and deep shadow grooves transforms a flat fireplace wall into a structural centerpiece.

Frequently Asked Questions (FAQ)

Q1: Can 3D fluted (OL) or micro-striated (FS) marble tiles be installed on shower floors or countertops?

A: No. These tiles are engineered exclusively for vertical wall applications. Installing raised 3D flutes or micro-striations on floors creates uneven underfoot surfaces, tripping hazards, and concentrated stress points under foot traffic that can cause edge chipping. In addition, horizontal recessed channels trap soap scum, water, and debris. On countertops, non-flat profiles prevent glassware or tableware from sitting level. They are ideal for bathroom walls, shower feature walls, vanity backsplashes, and fireplace surrounds.

Q2: What thin-set mortar is required for installing 15mm to 20mm heavy marble wall tiles?

A: Due to tile thicknesses ranging from 15mm to 20mm and individual weights up to 21.6 lbs, installers must specify a polymer-modified Large and Heavy Tile (LHT) mortar meeting ANSI A118.15 standards (such as MAPEI Large Tile & Stone Mortar). Unmodified thin-set or organic mastic adhesives must not be used as they lack adequate shear strength and non-sag performance. Installers should always practice 100% back-buttering to guarantee a minimum 95% mortar contact coverage behind every stone tile.

Q3: How are orders shipped and delivered across the United States?

A: Shipping methods are determined by total order weight. Orders with a total weight under 150 lbs are shipped via standard ground parcel delivery, primarily using FedEx Ground. For larger orders weighing 150 lbs or more, shipments are dispatched via LTL (Less-Than-Truckload) freight truck equipped with liftgate service to ensure safe handling of heavy stone loads. All items ship directly from U.S. warehouse stock with standard delivery within 3 to 7 business days nationwide.

Q4: How are fragile 3D marble tiles protected during transit without heavy wooden crates?

A: Every order is packaged using custom-molded Expanded Polyethylene (EPE) pearl cotton foam encased in an outer 5-ply heavy-duty corrugated box. This wood-crate-free packaging system provides 360-degree shock absorption for raised 3D flutes and tile edges. It meets courier transit standards while allowing tool-free unboxing with a simple utility knife, eliminating the need for crowbars or metal strapping.

Q5: How do I seal and maintain textured marble wall tiles in bath and feature wall areas?

A: Prior to grouting, apply a high-quality penetrating (impregnating) silane or siloxane stone sealer across the OL or FS textured face. Penetrating sealers absorb into the marble’s micro-pores to repel water and oils without altering the natural matte finish. For routine maintenance, wipe the surface using a pH-neutral natural stone cleaner and a soft microfiber cloth. Avoid acidic, bleach-based, or harsh abrasive cleaners.

Q6: Why do the tiles I receive show slight shade and veining variations compared to website photos?

A: Every tile is crafted from 100% natural Carrara Gray, Amber Gold, or Snow Mountain White marble, meaning every piece exhibits unique geological veining and mineral structure. To ensure total purchasing transparency, product landing pages feature unedited, real-world inspection photographs taken directly during factory dry-layout quality checks. These photos openly display natural tone variations, mineral deposits, pores, and industry-standard resin fills.

Architectural Conclusion & Procurement

3D textured marble wall tiles combine natural stone mineralogy with precision CNC manufacturing. Whether specifying the vertical shadow play of OL 3D fluting or the subtle matte diffusion of FS micro-striated scoring, these wall-only stone tiles offer rich tactile options for contemporary interior spaces.

Through protective EPE foam packaging, direct U.S. warehouse fulfillment, and transparent dry-layout photography, luxurymarblecraft.com provides a reliable procurement path for architects, contractors, and homeowners.

To review full specifications or examine unedited batch inspection photos, visit the main collection page: Luxury Marble Craft Wall Tile Collection.
